  5. CTI認證產品 [ Home > 產品資訊 > 5. CTI認證產品 ]



Characteristics&Structure and Standard Materials Recommended Concrete Foundations
Dimensions & Standard Specifications STD-Table
Pressure Drop

產品型號
series C-LC

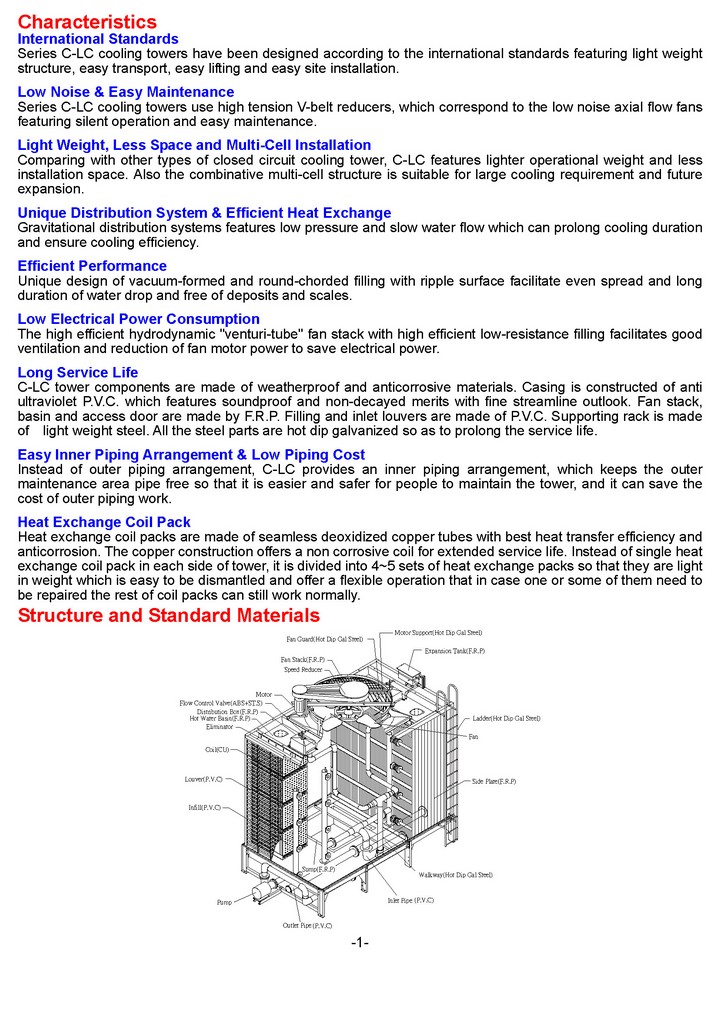

Characteristics&Structure and Standard Materials

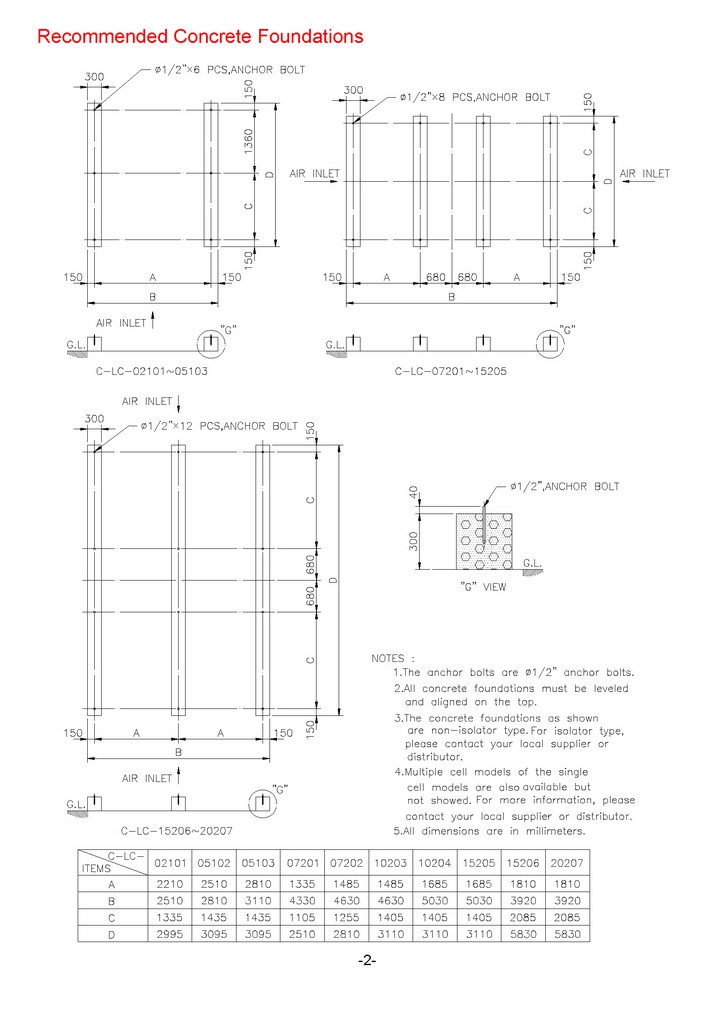

Recommended Concrete Foundations

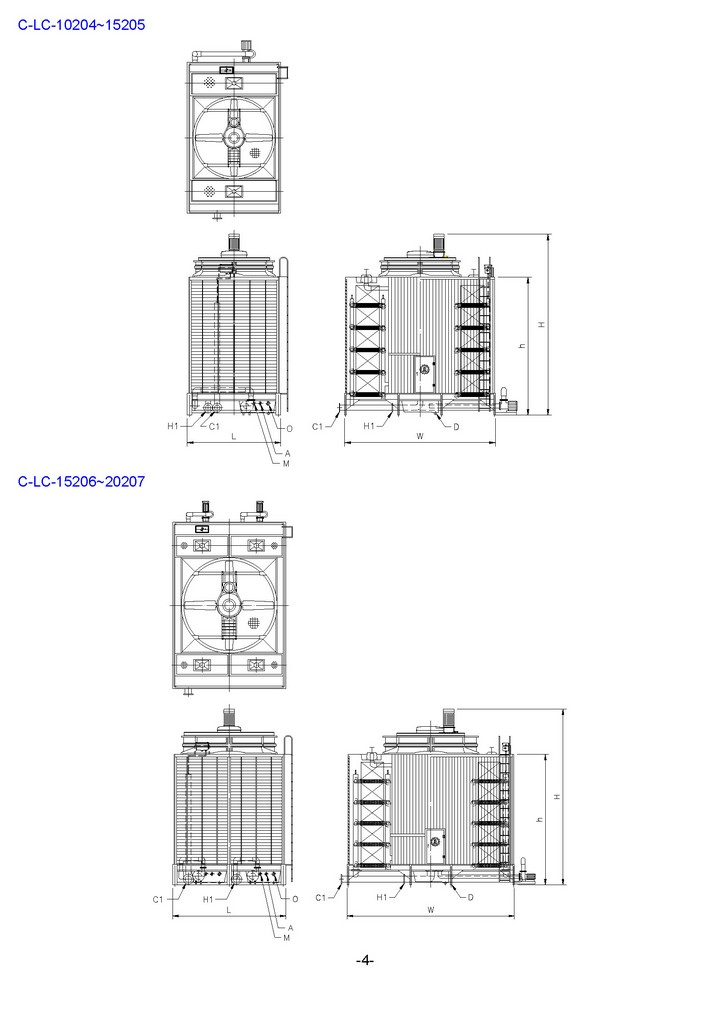

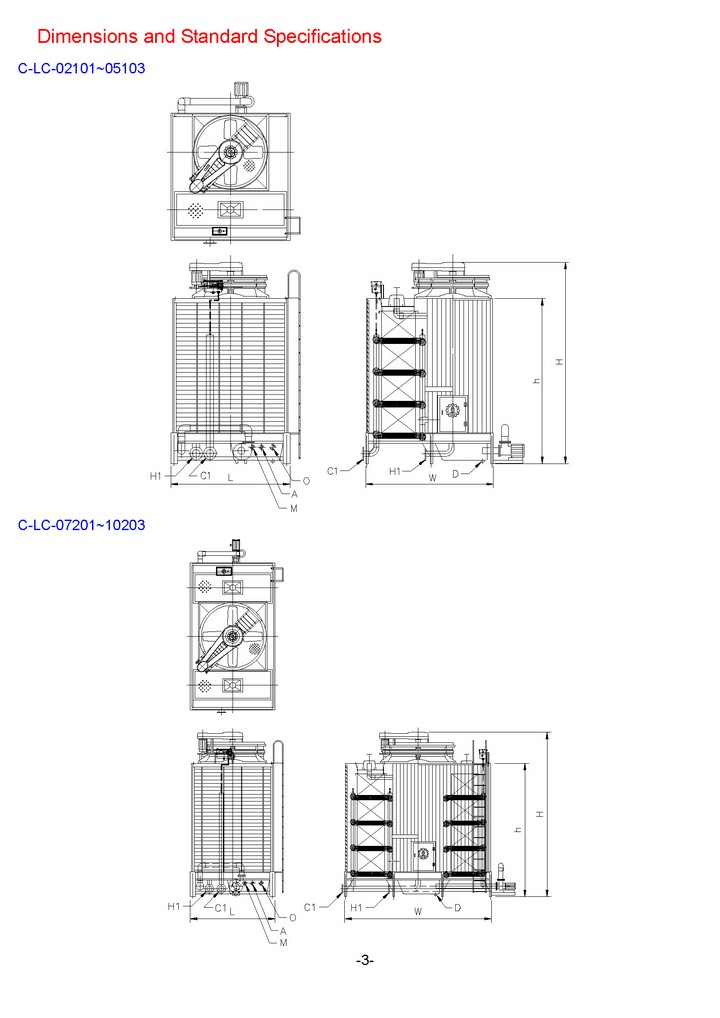

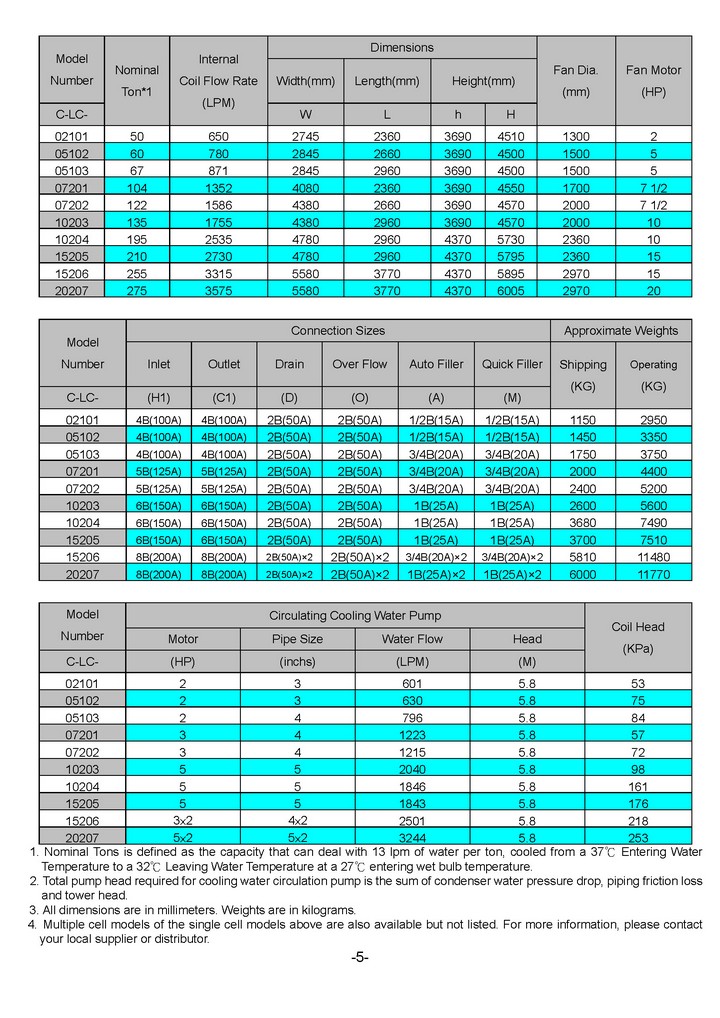

Dimensions & Standard Specifications

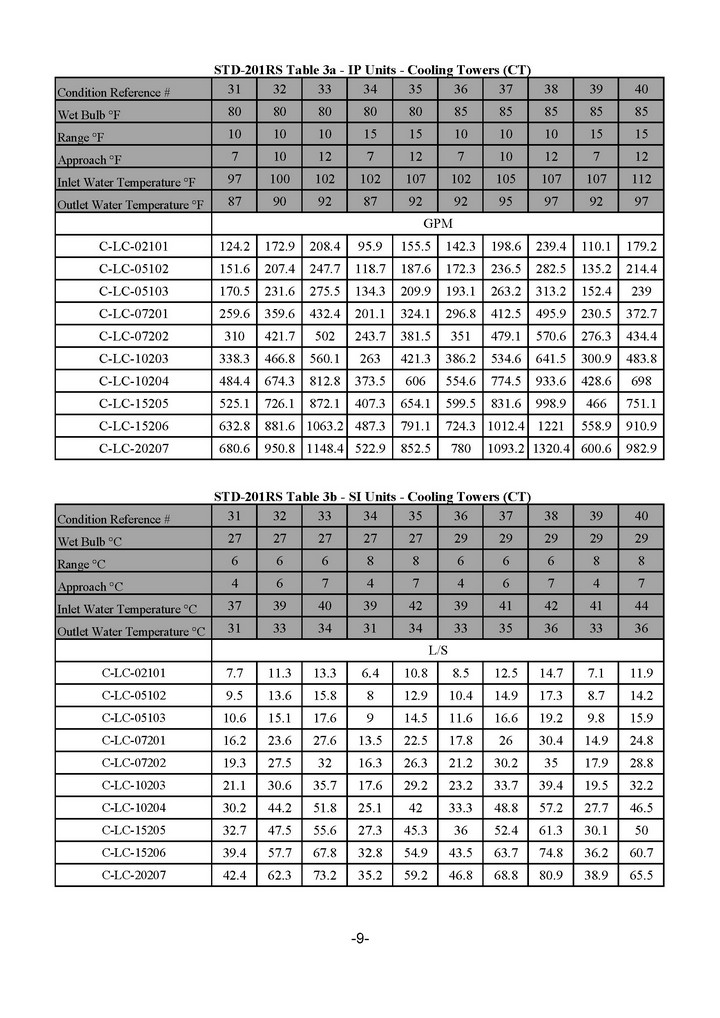

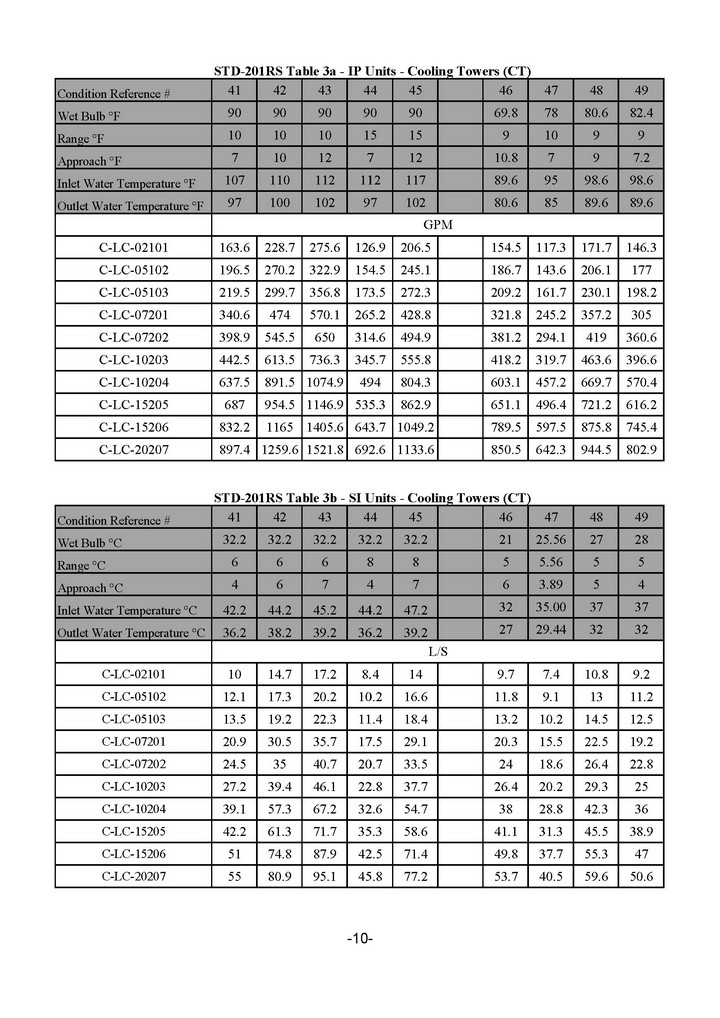

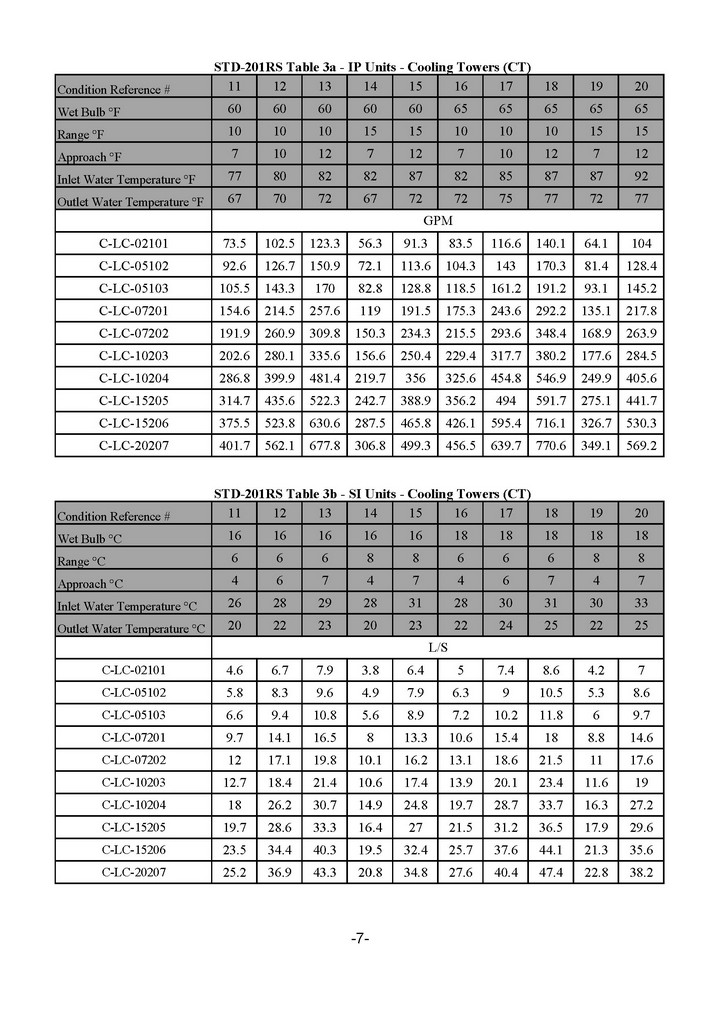

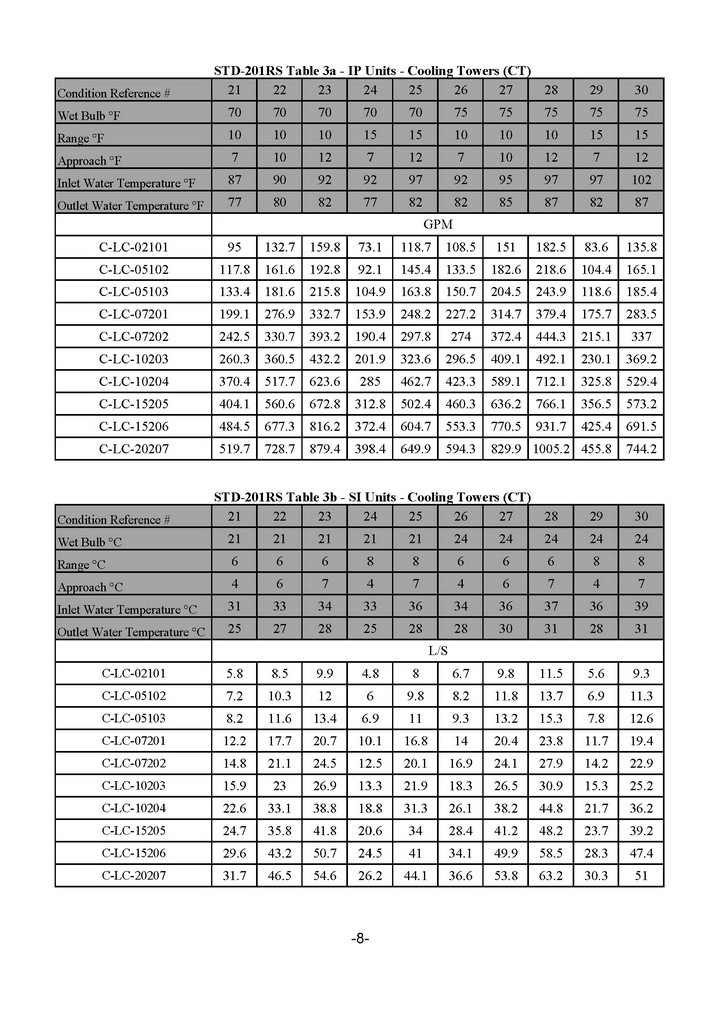

STD-Table











Pressure Drop

Product Line Model Number                 First Flow                   Second Flow                 Third Flow
Inlet Size Outlet Size Water Flow  Pressure Drop Inlet Size Outlet Size Water Flow  Pressure Drop Inlet Size Outlet Size Water Flow  Pressure Drop
mm mm LPM kPa mm mm LPM kPa mm mm LPM kPa
C-LC 02101 100A 100A 650 53 100A 100A 520 34 100A 100A 780 76
C-LC 05102 100A 100A 780 75 100A 100A 624 48 100A 100A 936 107
C-LC 05103 100A 100A 871 84 100A 100A 697 54 100A 100A 1045 120
C-LC 07201 125A 125A 1352 57 125A 125A 1082 37 125A 125A 1622 82
C-LC 07202 125A 125A 1586 72 125A 125A 1269 46 125A 125A 1903 103
C-LC 10203 150A 150A 1755 98 150A 150A 1404 63 150A 150A 2106 140
C-LC 10204 150A 150A 2535 161 150A 150A 2028 104 150A 150A 3042 231
C-LC 15205 150A 150A 2730 176 150A 150A 2184 113 150A 150A 3276 252
C-LC 15206 200A 200A 3315 218 200A 200A 2652 140 200A 200A 3978 312
C-LC 20207 200A 200A 3575 253 200A 200A 2860 163 200A 200A 4290 362
